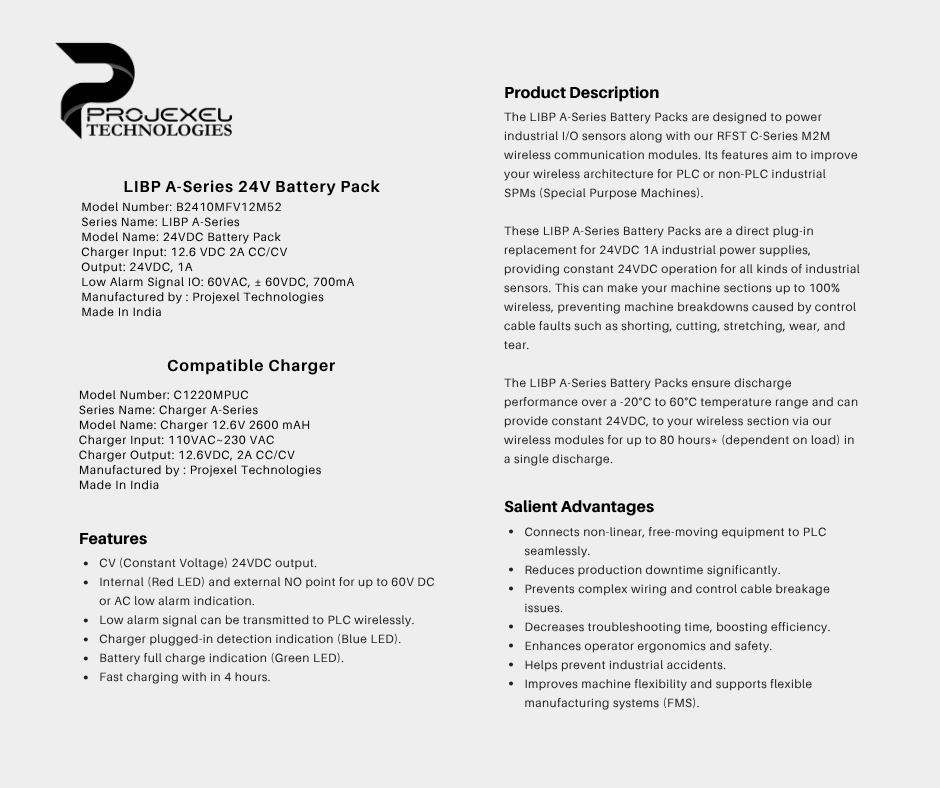

Key Features
- 24V DC Constant Voltage Output – Provides stable and regulated power for all industrial-grade sensors and I/O modules.
- High Capacity, Long Endurance – Powers wireless sections for up to 80 hours per charge (depending on load).
- Fast Charging – Achieves full charge in under 4 hours using the compatible C1220MPUC A-Series Charger.

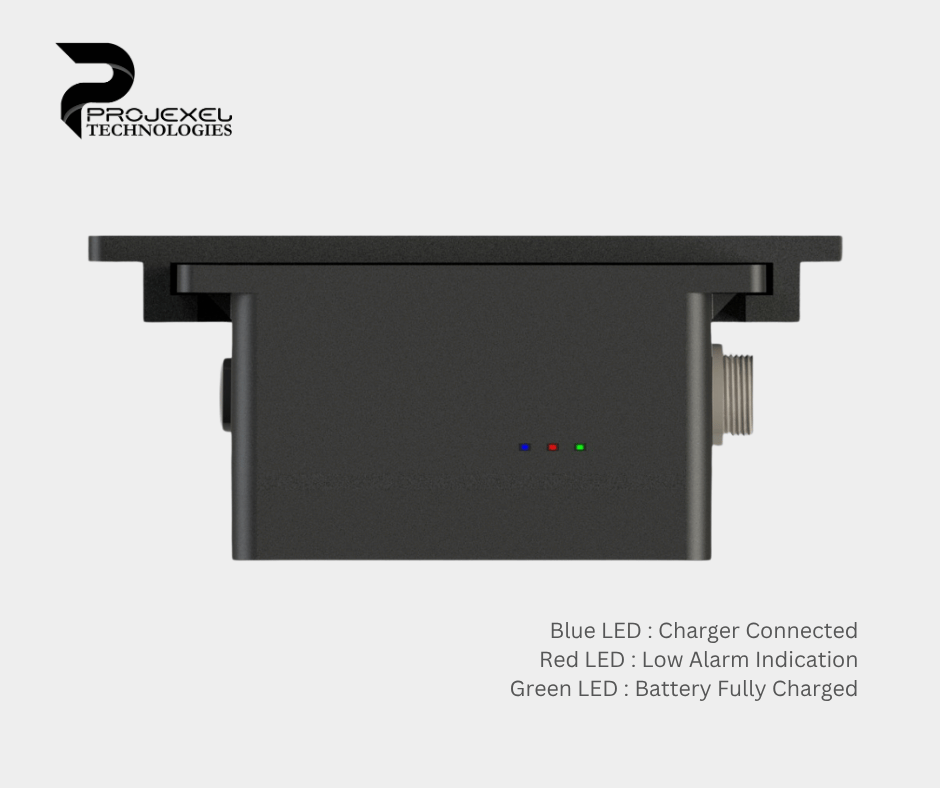

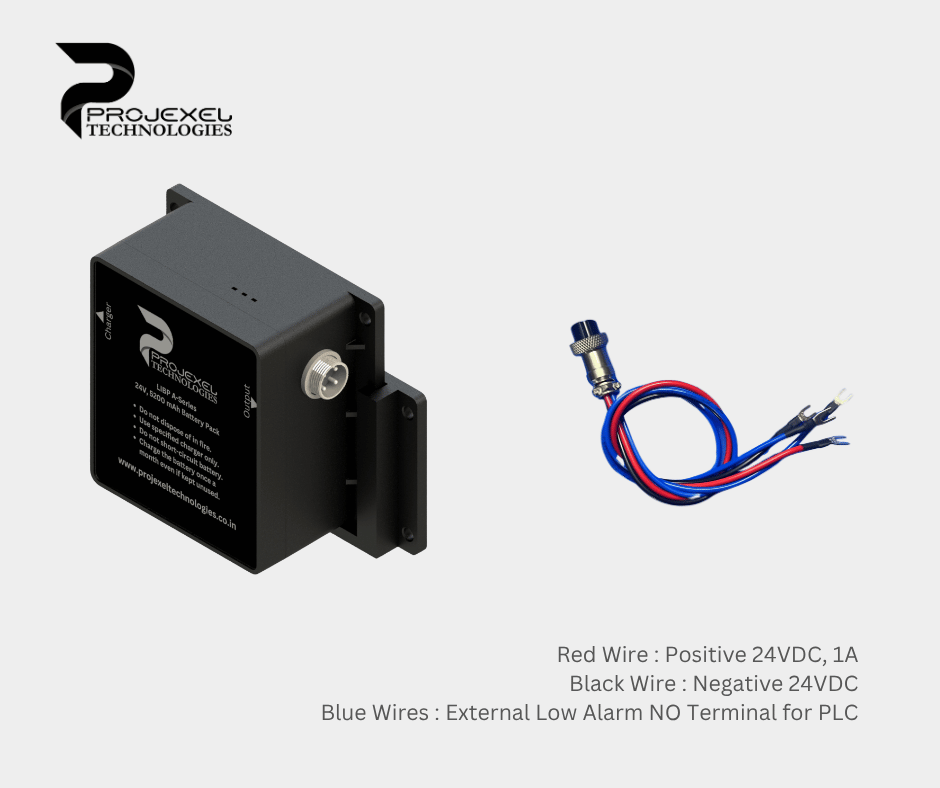

- Low Power Alarm Indication – Internal red LED + external NO alarm contact (up to 60V DC/AC) for PLC feedback.
- Charger Plug Detection (Blue LED) and Full Charge Indicator (Green LED) for real-time status.
- Smart Protection Circuit – Includes overcharge, over-discharge, overcurrent, overvoltage, reverse polarity, short-circuit, and thermal protection.
- Wide Operating Temperature Range – Reliable performance from –20°C to +60°C.

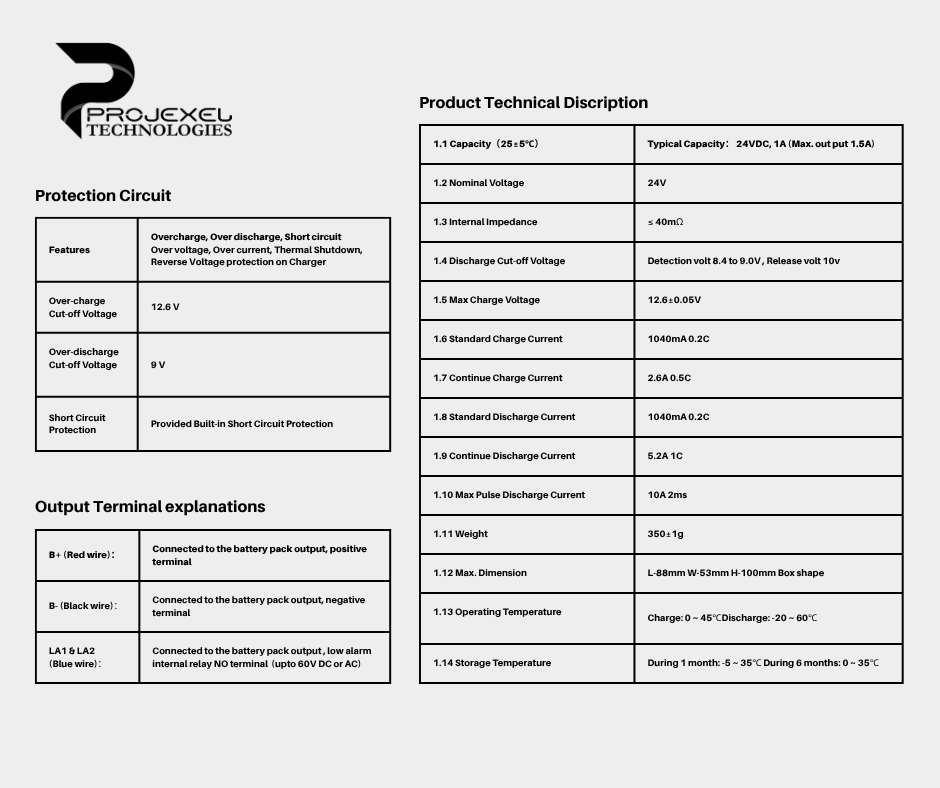

Performance Specifications
| Parameter | Specification |
|---|---|
| Nominal Voltage | 24V DC |
| Capacity | 5200 mAH |
| Output Current | 1A (Max 1.5A) |
| Operating Time | Up to 80 hours (load dependent) |
| Charging Voltage | 12.6V ±0.05V |
| Charging Time | ≤ 4 hours |
| Protection Features | Overcharge, Over-discharge, Short-circuit, Reverse Voltage, Thermal |
| Discharge Cutoff Voltage | 9V |
| Weight | 350 ± 1 g |

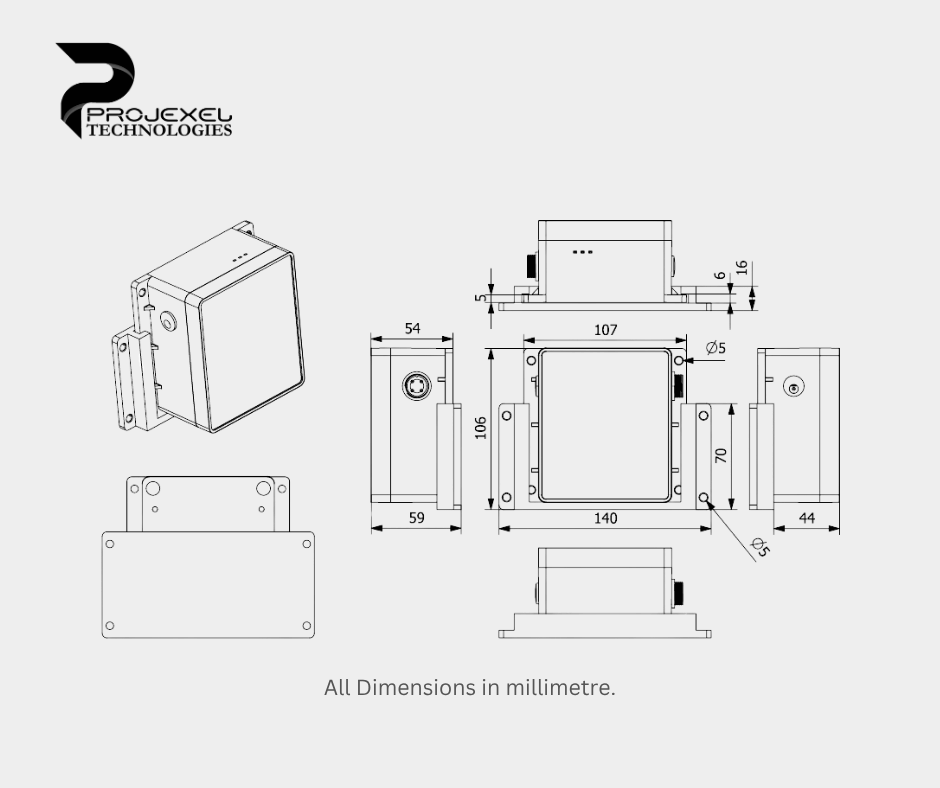

| Dimensions | 88 × 53 × 100 mm |
| Operating Temp. | –20°C to +60°C |
Salient Advantages
- Connects non-linear, free-moving equipment to PLCs seamlessly
- Prevents control cable damage and breakdowns
- Reduces troubleshooting and maintenance time
- Enhances operator ergonomics and machine flexibility
- Supports flexible manufacturing systems (FMS)
Compatible Charger

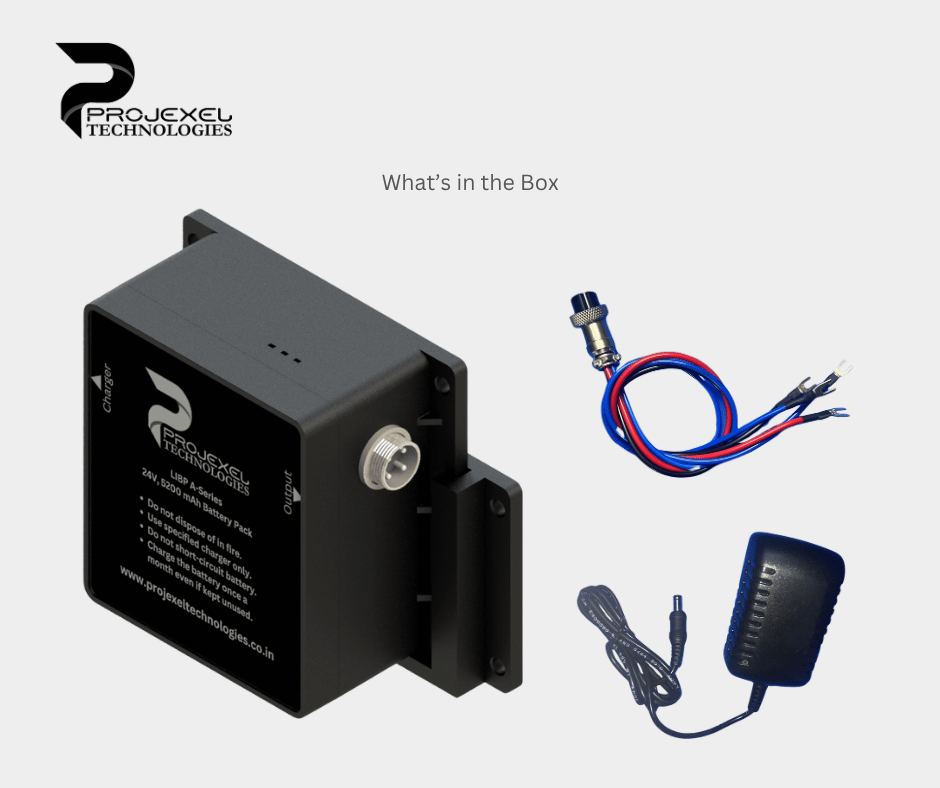

Model: C1220MPUC (A-Series Charger)
Input: 110–230 VAC
Output: 12.6V DC, 2A (CC/CV Mode)
Applications
- Wireless I/O systems
- Robotic arms and turntables
- Conveyor and packaging machinery
- Mobile or rotating industrial units
- Remote automation modules

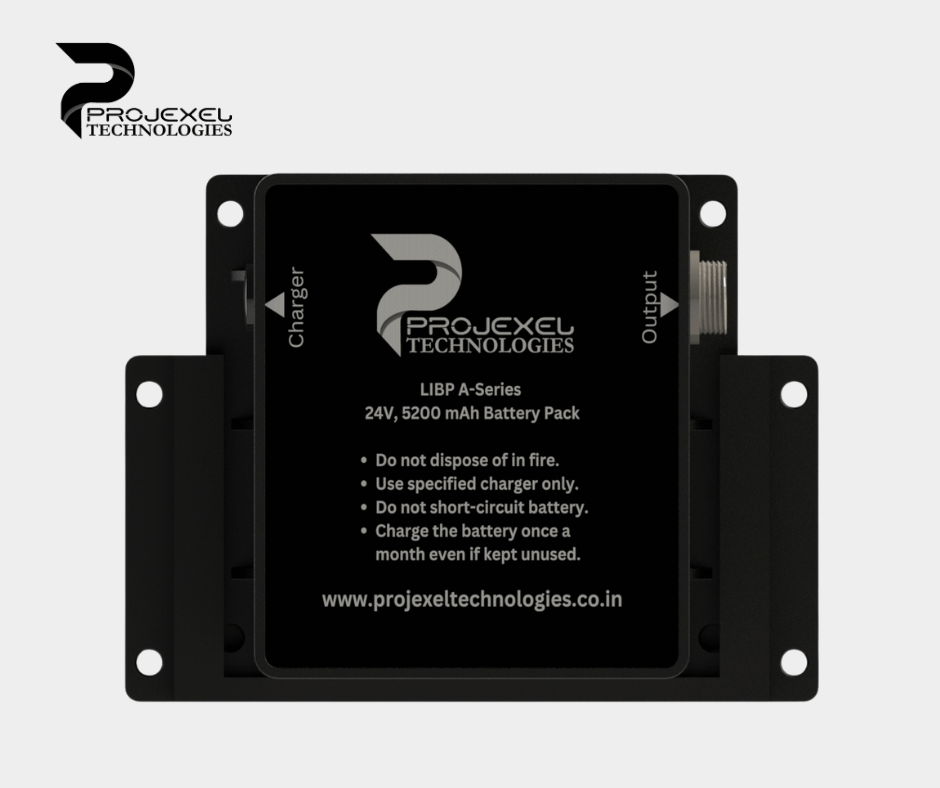

Safety Warnings
- Charge only with the specified Projexel charger.
- Do not expose to fire, water, or extreme heat.
- Avoid short-circuiting or mechanical shock.
- Charge the battery once per month even when not in use.
